Two Stage Air Compressors

Two Stage Compressors Two Stage Air Compressors consist of two or more cylinders. The first stage, low pressure (LP) cylinder is always larger in diameter than the second stage, high pressure (HP) cylinder. The atmospheric Air enters into LP Cylinders through inlet filter & valves and passes to HP cylinder through intercooler and HP inlet valves. The Air is for higher pressure by HP cylinder and then delivered to final destination. The highly efficient intercooler provides maximum heat dissipation between stages, resulting in more Air per horse power and less trouble from carbonization.

Economically priced, Paras Compressor Two Stage Value Packaged Air Compressors are perfect for automative, commercial of light industrial applications where a dependable Air supply is required. The value package includes the added features of a mounted and wired starter, automatic start / stop pressure switch control with suitable size receiver tank.

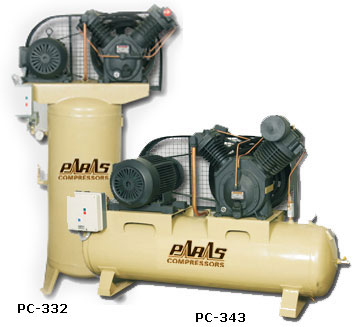

MODEL H.P NO.OF CYLINDER P.D (CFM) F.A.D (CFM) MAX..WORKING PRESSSURE PSIG KG/CM2 AIR RECEIVER
PC-324 2 2 7.46 5.63 175 12.3 100/166
PC-2430 3 2 8.90 6.00 175 12.3 100/166
PC-324 3 2 9.79 6.93 175 12.3 100/166
PC-332 5 2 17.32 13.02 175 12.3 220
PC-343 7.5 2 26.40 19.70 175 12.3 250
PC-2600 7.5 2 28.85 21.49 175 12.3 250
PC-2635 7.5 2 29.85 24.18 175 12.3 250
PC-2600 10 2 37.42 27.23 175 12.3 250
PC-2635 10 2 37.82 30.00 175 12.3 300
PC-161T2 10 2 44.00 32.00 175 12.3 300
PC-2600 12.5 2 44.75 30.06 175 12.3 300
PC-161T2 12.5 3 49.50 38.41` 175 12.3 500
PC-105T 15 3 68.20 49.81 175 12.3 500
PC-105T 20 3 81.80 59.80 175 12.3 500
PC-115T2 25 3 82.40 61.00 175 12.3 500
PC-115T2 25 3 98.91 73.75 175 12.3 500
PC-115T2 30 3 110.00 81.94 175 12.3 500

Two Stage Air Compressors Manufacturer in India : Paras Air Compressors
