Single Stage Air Compressor
Single Stage Air Compressor

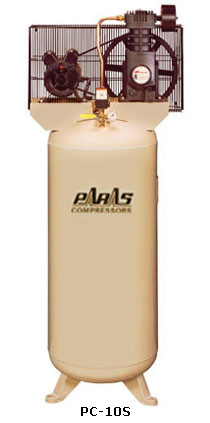

Single Stage Air Compressor:

The Air Compressor having one / two / three piston and cylinder of the same bore size are Single Stage Compressors. The function of each piston is to compress the air from the atmosphere to the final destination.

Single Stage Air Compressor are ideal for a multitude of small business uses including Pneumatic tools, Panel spray painting, Nailers, Staplers, Blow guns, Liquid transfer, Graniting and Cleaning. It is a reliable source of low pressure air for numerous application like instrumentation, process and boiler fuel oil automization, Chemical Industries, Filteration Plant, Blow Moulding etc.

Our Complete Model Range and Technical Details are given below in the Table.

Conversion:
1 cfm = 28.32 liter / min
1 cfm = 0.0283m / min

1m / min = 35.31 cfm
1 kg / cm = 735.6 mm Hg

MODEL H.P NO.OF CYLINDER P.D (CFM) F.A.D (CFM)

MAX..WORKING PRESSSURE PSIG KG/CM2 AIR RECEIVER (LITER)
PC-5 0.5 1 2.90 2.08 80 5.5 70
PC-5S 1 1 5.15 3.76 80 5.5 100
PC-10S 1.5 1 6.20 4.70 80 5.5 100
PC-325 2 2 9.40 6.80 80 5.5 100/166
PC-325 3 2 14.85 10.33 80 5.5 100/166
PC-334 5 2 25.01 16.01 80 5.5 200
PC-345 7.5 2 38.90 28.80 80 5.5 250
PC-345 10 2 52.80 39.10 80 5.5 300
PC-97S2 10 2 71.30 53.05 40 2.25 300
PC-95S2 12.5 2 88.00 66.00 40 2.25 300
PC-105S2 15 3 109.00 81.90 40 2.25 500
PC-105S2 20 3 148.50 114.40 40 2.25 500
