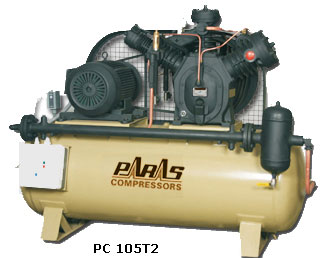

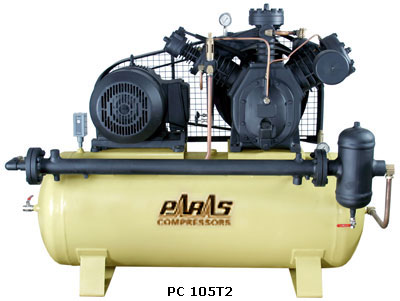

Multi stage High Pressure Air Compressors

Multistage heavy duty Air Compressors are designed for high pressure operation up to 70.31 kg / cm2g (1000 psig). These compressors are used in Valve and System Testing, PET Bottling Industries, Diesel Engine Starting, Laboratory Test Work, Space and Aviation Industries, Air Blast Circuit Breaking, Dairy, Marine and Military Applications etc.

MODEL	H.P	NO.OF CYLINDER	P.D (CFM)	F.A.D (CFM)	MAX..WORKING PRESSSURE PSIG KG/CM2	AIR RECEIVER (LITER)
PC-321	3	2	7.40	4.80	500 35.15	166
PC-321	5	2	10.80	6.45	500 35.15	220/250/300
PC-97T4	5	2	13.10	7.86	500 35.15	220/250/300
PC-97T2	7.5	2	25.50	13.30	500 35.15	300
PC-97T2	10	2	23.30	17.05	500 35.15	300/500
PC-97T2	12.5	2	36.00	21.60	500 35.15	300/500
PC-105T2	15	3	41.25	31.41	500 35.15	500
PC-105T2	20	3	49.50	37.70	500 35.15	500/1000

Conversion :	1 cfm = 28.32 liter / min	1 cfm = 0.0283m³ / min
	1m³ / min = 35.31 cfm	1 kg / cm² = 735.6 mm Hg
